The 2022 EVO XF has been precision-engineered, field-tested and fine-tuned for unparalleled performance.

The 2022 EVO XF is powered by PSE's all-new E2 and S2 cams, designed to maximise energy transfer from limb to arrow and to achieve optimal performance across a wide spectrum of draw length ranges, from 26.5" all the way up to a 32.5" draw. The cam tracks on the E2 and S2 cams are also 15% wider, resulting in a more stable and consistent shot. The E2 and S2 are offered with both high let-off and low let-off mods, and also feature wider and more robust draw stops for an amazingly solid back wall.

The EVO XF has also been built with the new PSE Guard-Lok system, which allows the cable rod to shift left and right without affecting shot consistency. The Guard-Lok provides maximum support to the cable rod and eliminates creep at higher draw weights and longer draw lengths. Additionally, the new PSE Limb Vise Pocket provides superior stability thanks to its new and improved limb locking system. The Limb Vise Pocket is also 15% lighter than PSE's previous pockets, whilst maintaining durability and rigidity.

All New PSE Guard-Lok System

- Dual screw mounting attachment ensures optimum stability and consistency.

- Horizontal slide adjustment allows the cable rod to shift left and right without affecting shot consistency.

- Provides maximum support to the cable rod and eliminates creep at higher draw weights and longer draw weights.

All New PSE Limb Vise Pocket

- Engineered to provide superior stability through an improved limb locking system.

- Limb pivots tighten against the handle surface to ensure the pocket remains centered over the riser regardless of limb bolt position.

- 15% lighter than previous pockets while maintaining durability and rigidity.

All New PSE E2 & S2 Cams

- Specifically designed for maximum energy transfer from limbs to arrow.

- Maximises performance across all draw length ranges for improved speeds at long and short draw lengths.

- Cam payout tracks are 15% wider for greater load distribution across the axle, resulting in a more stable and consistent shot.

- New bearing system has been built and tested to hold up under the most extreme repetitive use.

- E2 and S2 cams are both offered with HL (90%-80%) and LL (75%-65%) letoff mods.

- Wider and more robust draw stops help to provide an amazingly solid back wall for the ultimate shooting experience.

PSE EVO XF Riser

- Delivers the "dead in hand" experience at a lighter mass weight.

- Dual Berger Holes provide maximum security for traditional rest mounting options.

- Mounting positions for 2-piece quivers.

Quick Disconnect Sling System

- Provides for integrated and seamless connection of a bow sling.

- Field tested to provide a reliable, convenient, and quick disconnect carrying system.

Precision Buss Tuning System

- Provides micro-adjustment tuning for unmatched precision.

- In conjunction with the new E2 and S2 cam's wider payout tracks, the PBTS provides more effective fine tuning.

QAD Integrate Rest Mount

- Machined dovetail system for zero-tolerance QAD rest mounting.

- The PSE QAD Integrate arrow rest and mount provides the most secure and low-profile arrow rest footprint on the market.

EVO XF 33 SPECIFICATIONS - E2 CAM

BRACE HEIGHT: 6 3/4"
AXLE-TO-AXLE: 29 5/8"
ATA/IBO SPEED: 345 - 337 FPS
LETOFF: 80% - 90%
MASS WEIGHT: 4.3LBS
DRAW LENGTH RANGE: 27.5" - 31.5"
LIMB BOLT TURNS: 10
CAM: E2

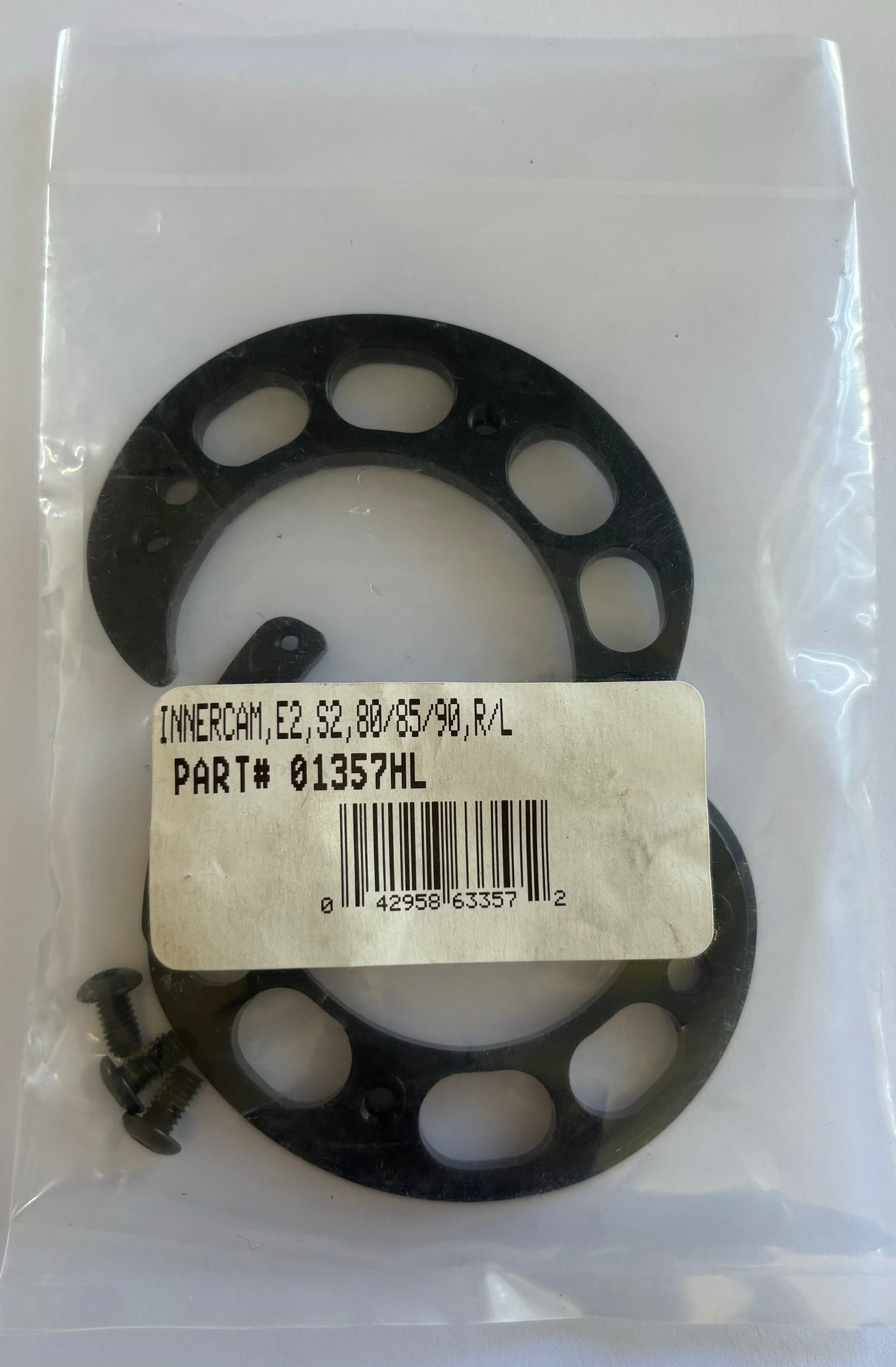

PSE E2/S2 Module HL Module (80-90%)

Product Description
