ULTIMA RC PRO

The top-of-the-line recurve sight, featuring every feature you’ve ever dreamed of. ULTIMA RC PRO’s radically redesigned carbon extension redefines vibration elimination.

Polygonal Carbon Extensionã€Patent pendingã€‘

ULTIMA RC PRO’s carbon extension features a radical new design redefining vibration elimination.
The ultimate goal of eliminating vibration through the shape of the carbon extension lead us to a fishing pole taper shape. Through it, ULTIMA RC PRO is able to eliminate most of the unnecessary vibration on the shot.
In simulations, the Polygonal Carbon Extension produces 87% less initial vibrations than the conventional shape.

Additionally, SHIBUYA has applied the concept of "spine" to the extension, tailoring to a wide variety of archers' desired shooting feel by including two different stiffnesses of the Polygonal Carbon Extension in the lineup.

By targeting vibration not only through material, but also shape, ULTIMA RC PRO offers a shooting feel like never before.

Redesigned Mounting System

ULTIMA RC PRO features a brand-new mounting mechanism to achieve a more secure lock than ever.
By increasing the knob's diameter, and maximizing the contact area with the carbon extension, ULTIMA RC PRO's mount achieves a rattle-proof lock with less effort required than ever. Never worry about the knob coming loose again with this simple yet secure mounting system!

Sight Scale Plates

Both sides of ULTIMA RC PRO’s elevation bar feature metal sight scale plates. Each ULTIMA RC PRO includes a standard scale plate, as well as a blank plate for a printed tape. Left and right are interchangeable, to fit any archer’s preferred shooting style.

Redesigned Sight Pin Locker

ULTIMA RC PRO features a redesigned sight pin locker with a toolless thumb screw. Enjoy an effortless shooting experience that not only improves usability, but cuts down on the time needed for adjustments by eliminating the hex wrench for adjustments.

Double Mount ï¼† Minimized Elevation Bar

Introducing the double position mounting system. This revolutionary mount enabled us to reduce the elevation bar's length to the absolute minimum, drastically reducing the sight's target side weight. This weigt reduction results in the virtual elimination of vibration and shock upon the shot. The double mount ULTIMA PRO is the pinnacle of SHIBUYA's focus on vibration reduction!

image size

Type		Single Mount ï¼‹ 520 Elevation		Double Mount ï¼‹ 320 Elevation		Double Mount ï¼‹ 250 Elevation
Extension Bar		9" Polygonal Carbon Extension Typeï¼šA or B
Extension Bar Type		Typeï¼šA	Typeï¼šB	Typeï¼šA	Typeï¼šB	Typeï¼šA	Typeï¼šB
Mass Weight		233g	221g	221g	208g	212g	200g
Aperture Distanceï¼ˆAPDï¼‰		MAX 249mmã€€MIN 189mm
Elevation	Adjustment Model	Screw Drive with No-Lock Quick Adjust Function
	Length	132mmï¼ˆapprox. 5.2"ï¼‰		81.3mmï¼ˆapprox. 3.2"ï¼‰		63.5mmï¼ˆapprox. 2.5"ï¼‰
	Adjustable Range	107mm		59.7mm		41.9mm
	Adjustment Increments	1å›žè»¢ 1/24"ï¼ˆapprox. 1mmï¼‰
	Adjustment Increments	1click 1/480"ï¼ˆapprox. 0.05mmï¼‰
	Tilt Adjustment	available
Windage	Adjustable Range	5.4mm
	Adjustment Increments	1/32" per revolutionï¼ˆapprox. 0.8mmï¼‰
	Adjustment Increments	1/640" per clickï¼ˆapprox. 0.04mmï¼‰
	Compatible	No.8-32 threaded sight pins
Extension	Length	225mmï¼ˆapprox. 9"ï¼‰
	Adjustable Range	2.4"ï¼ˆ60mmï¼‰
	Adjustable Increments	0.5"ï¼ˆ12.7mmï¼‰
Material	Elevation	6000 series aluminum alloy
	Windage Unit	6000 series aluminum alloy
	Extension	Carbon Fiber
Colors		Blackãƒ»Silverãƒ»Blueãƒ»Red		Blackãƒ»Silverãƒ»Blueãƒ»Red		Black
RH/LH		available
Release Date		2020å¹´
Included Accessories		Soft Sight Case No.10-24 mount screws Hex Wrenches 1.5ãŽœï¼2.5ãŽœï¼3ãŽœ Blank sight tape
Included Accessories		Instructions Sheet Warranty card, parts diagram
Separately available options		220 Elevation Barã€60ãŽœ Double Mount

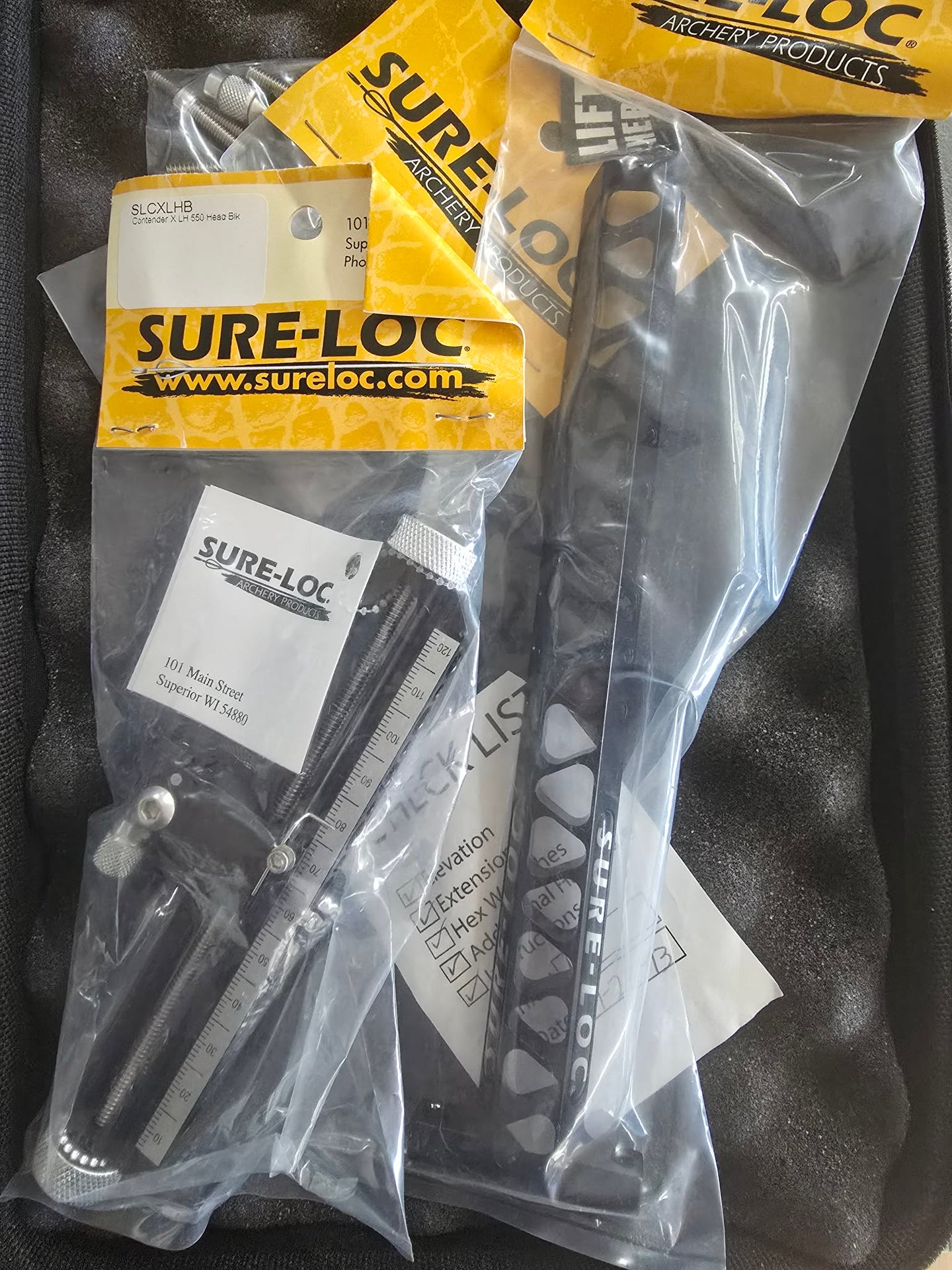

SureLoc Recurve sight Contender X L/H
