• Pin groove keeps pin straight and fiber behind the pin

• Nine 8/32 tapped holes for attaching light kit: One angled to intersect center of lens for illuminating a colored dot

• All 20/20 components are interchangeable with matching threads

• 5/16 Mounting Slot accepts a hex or square mounting shaft

• 8 Pin Mounting Positions

Useful Dimensions:

•  Short and Long Shade have an outside diameter of 1.6"

•  Lens Diameter: 1.350"  / Max Diameter Lens: 1.355"

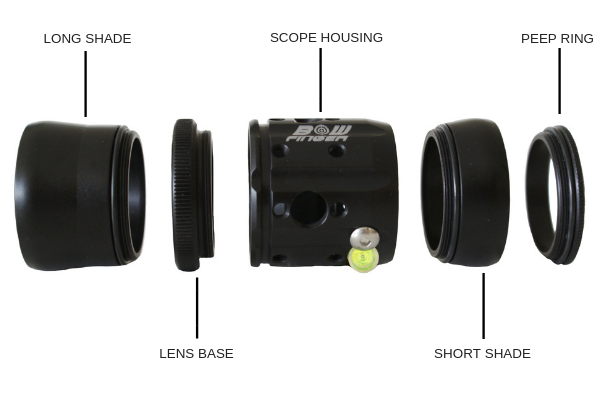

•   Overall length of kit: 3.5"                                                                                  (Scope housing, lens base, long hood, short hood & peep ring)

• Inside diameter of scope: 30mm

**Filter Kits, Lens & Pin Sold Separately
